ZCRD(DOUBLE BEAMS/ TOOLS HOLDER)
Overview

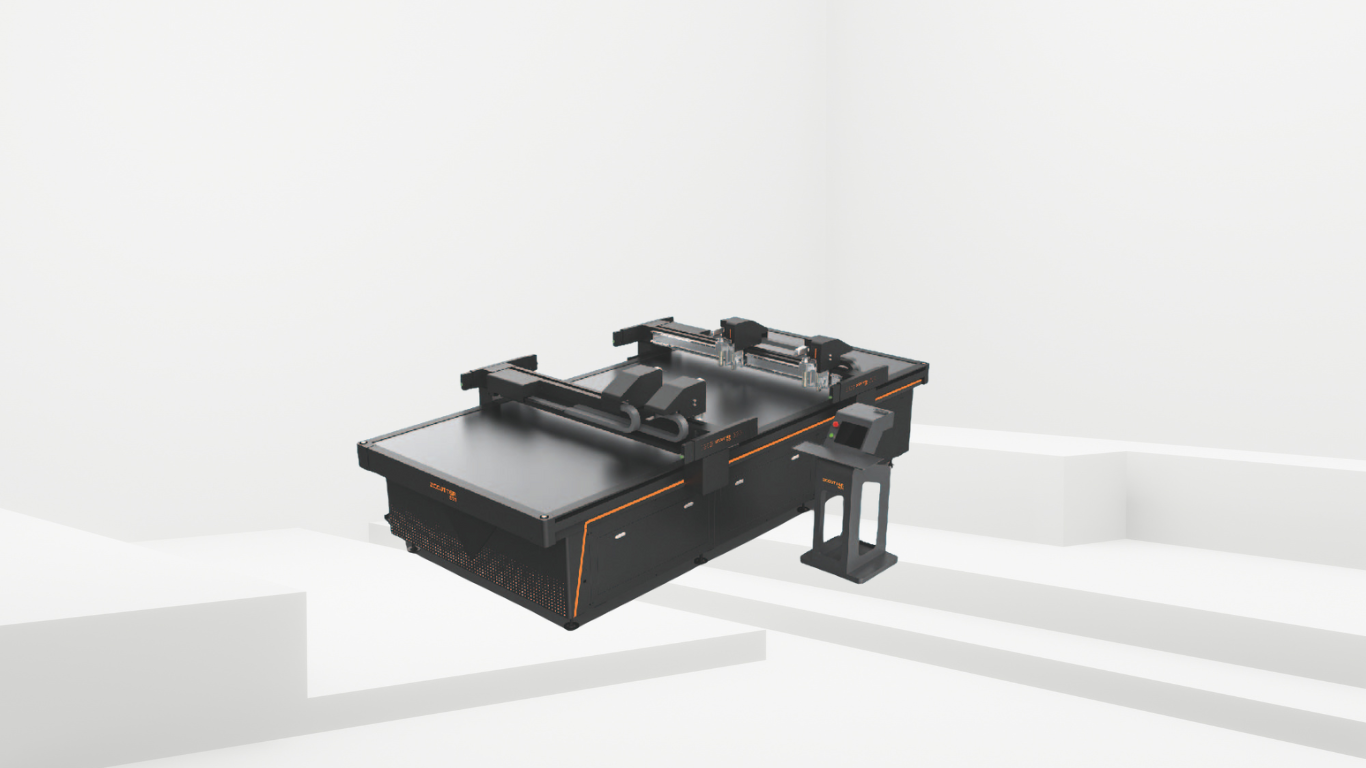

ZCRD High-Precision Digital Cutting Machine

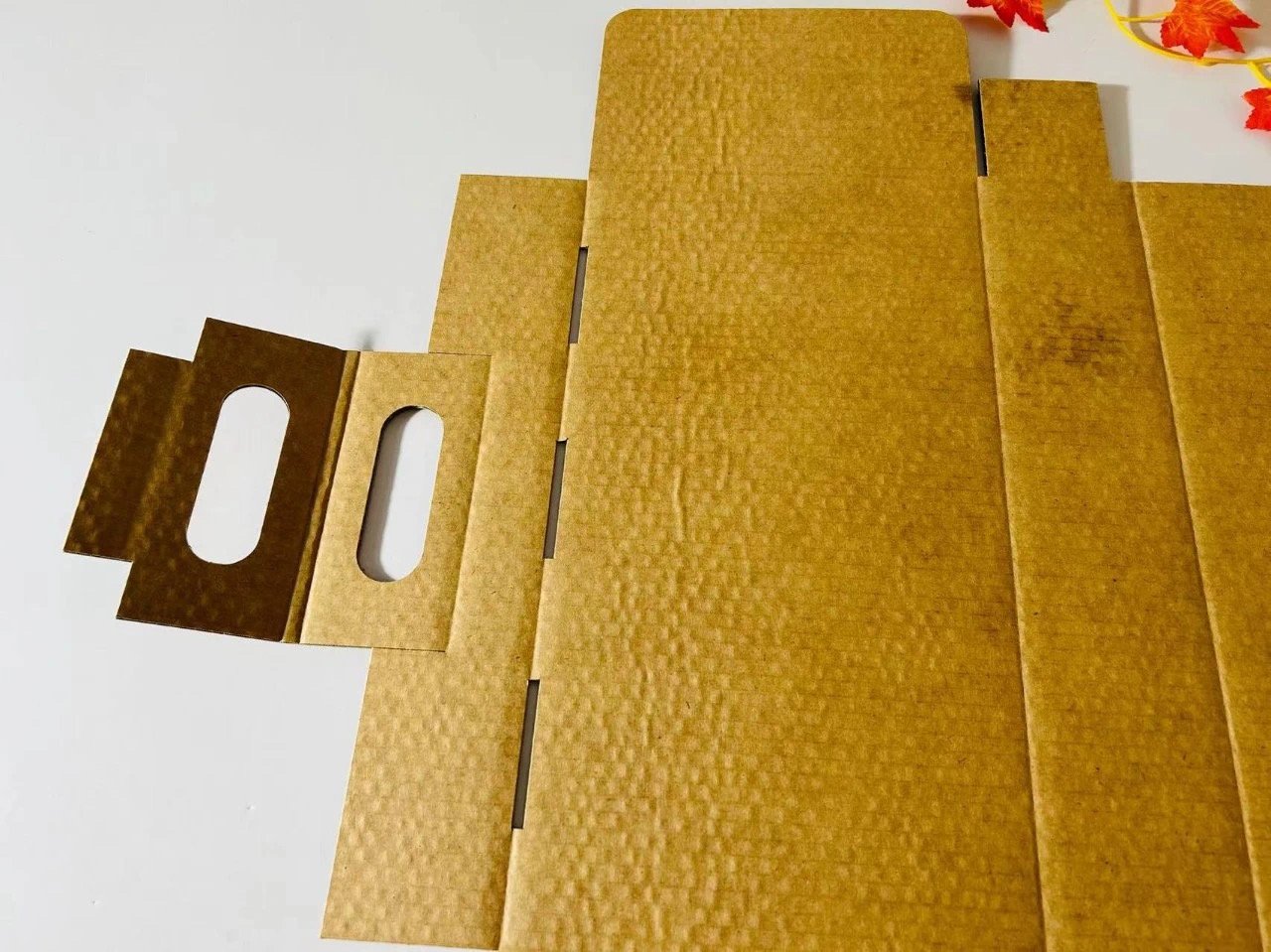

The ZCRD is an advanced automated cutting system designed for the precision processing of flexible materials, including corrugated cardboard, EPE (expanded polyethylene) foam, sponge, silicone foam, and more. Equipped with a powerful digital cutting system, it eliminates the need for traditional molds, enabling efficient and cost-effective production.
Key Features:
- Mold-Free Cutting – Streamlined programming for quick setup and flexible design changes.
- High Efficiency & Accuracy – Delivers precise cuts with minimal material waste.
- Cost & Material Savings – Reduces production costs while optimizing resource utilization.
- Versatile Material Compatibility – Ideal for a wide range of soft and flexible materials.
Ideal for industries requiring fast, accurate, and adaptable cutting solutions, the ZCRD enhances productivity while maintaining superior cutting quality.
1. Basic Specifications
| Parameter | ZCRD1816 | ZCRD2516 | ZCRD3016 |
|---|---|---|---|
| Cutting Area | 1800×1600mm | 2500×1600mm | 3000×1600mm |
| Power | 9KW | 9KW | 9KW |
| Weight | 800KG | 900KG | 1060KG |
| Footprint | 3500×2280×1600mm | 4500×2280×1600mm | 5500×2280×1600mm |
| Packing Crate | 4000×2500×1800mm | 5000×2500×1800mm | 6000×2500×1800mm |
2. Core Performance
- Cutting Accuracy: ≤0.05mm (Industry-leading)
- Positioning Accuracy: ≤0.1mm (Upgradable to ±0.02mm with CCD camera)
- Max. Cutting Thickness: 0-60mm (Customizable to 100mm)
- Speed Range: 40-1800mm/s (Auto-adjustable for materials)
- Min. Circle Diameter: 3mm (Precision micro-cutting)
3. Hardware Configuration
- Cutting Tools:
- Standard: 2*Vibrating knife (Pneumatic/Electric)+ 2*Pressing Wheel
- Optional: Straight knife, Drawing Pen
- Vacuum System: Multi-zone adsorption (Stable fixation)
- Transmission: Delta servo motors + Linear guideways/Rack & pinion
- Control System: ZCCUTTER 2.0 motion control card
4. Software & Compatibility
- Interface: PLC touchscreen (User-friendly)
- File Formats: DXF/AI/PDF/CDR/PLT
- Command System: HPGL (Industrial standard)
- Data Transfer: Gigabit Ethernet (High-speed)
5. Compatible Materials

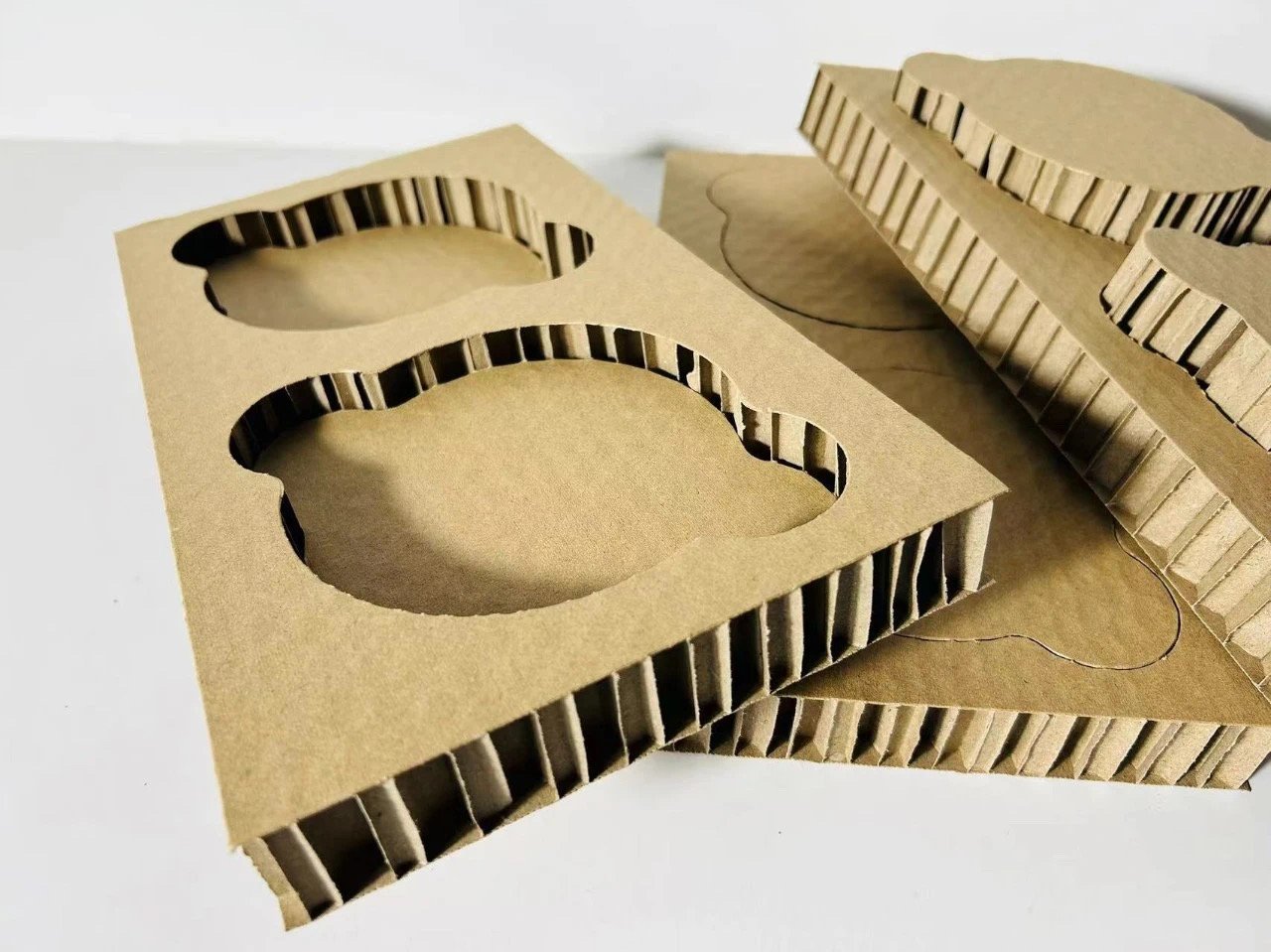

Leather, PVC, ESL foam, EVA, PE foam (EPE), silicone foam, honeycomb boards, etc. Ideal for automotive interiors, medical packaging, and precision-demanding industries.
6. Value-Added Services
- Customization:
- CCD camera positioning (±0.02mm)
- Extended thickness (up to 100mm)
