ZCRC(TRIPLE TOOLS HOLDER)
Overview

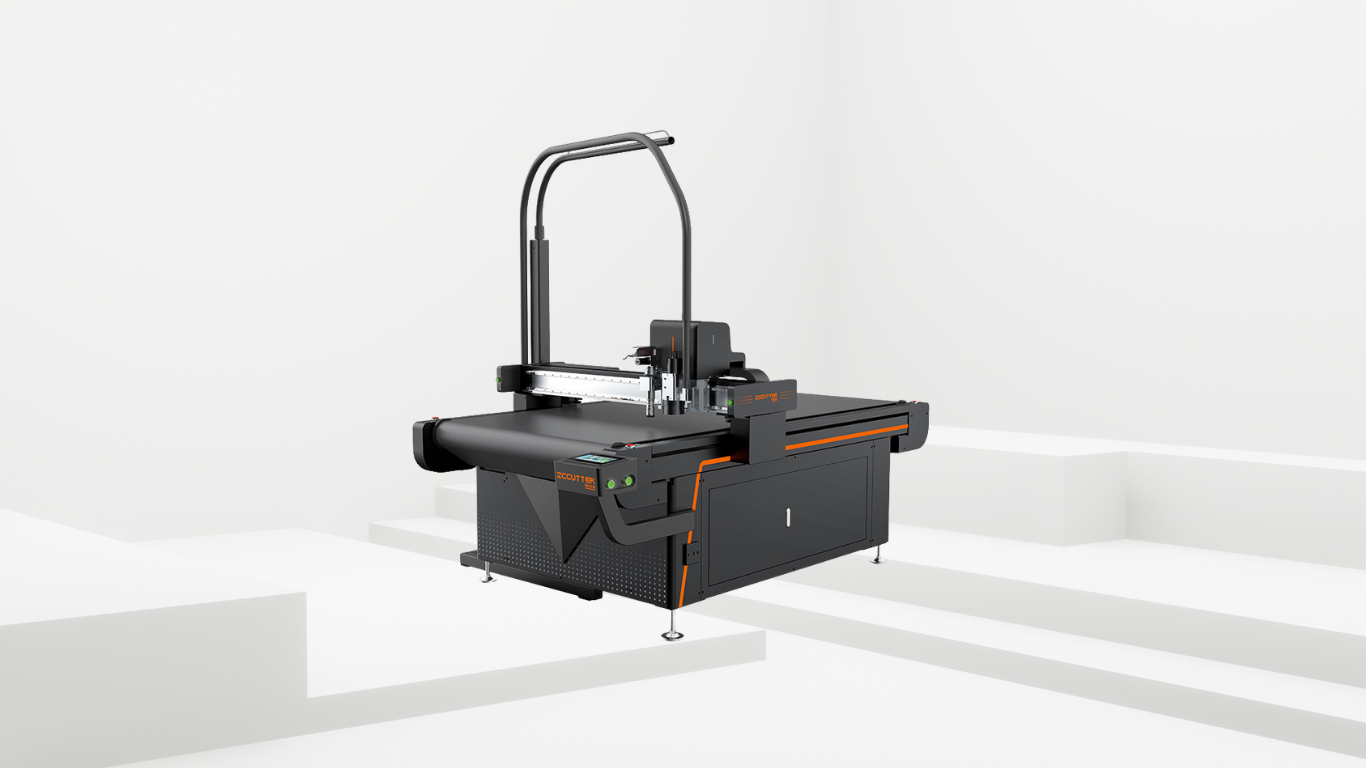

ZCRC High-Precision Digital Cutting Machine
The ZCRC is an advanced automated cutting system designed for the precision processing of flexible materials, including corrugated cardboard, EPE (expanded polyethylene) foam, sponge, silicone foam, and more. Equipped with a powerful digital cutting system, it eliminates the need for traditional molds, enabling efficient and cost-effective production.
Key Features:
- Mold-Free Cutting – Streamlined programming for quick setup and flexible design changes.
- High Efficiency & Accuracy – Delivers precise cuts with minimal material waste.
- Cost & Material Savings – Reduces production costs while optimizing resource utilization.
- Versatile Material Compatibility – Ideal for a wide range of soft and flexible materials.
Ideal for industries requiring fast, accurate, and adaptable cutting solutions, the ZCRB enhances productivity while maintaining superior cutting quality.
1. Basic Specifications
| Parameter | ZCRC1410 | ZCRC1814 | ZCRC2516 |
|---|---|---|---|
| Cutting Area | 1400×1000mm | 1800×1400mm | 2500×1600mm |
| Power | 3KW | 5.5KW | 9KW |
| Weight | 600KG | 800KG | 1000KG |
| Footprint | 2560×1800×1400mm | 3000×2300×1400mm | 3670×2380×1400mm |
| Packing Crate | 2800×2000×1600mm | 3300×2500×1600mm | 3900×2580×1600mm |
2. Core Performance
- Cutting Accuracy: ≤0.05mm (Industry-leading)
- Positioning Accuracy: ≤0.1mm (Upgradable to ±0.02mm with CCD camera)
- Max. Cutting Thickness: 0-60mm (Customizable to 100mm)
- Speed Range: 40-1800mm/s (Auto-adjustable for materials)
- Min. Circle Diameter: 3mm (Precision micro-cutting)
3. Hardware Configuration
- Cutting Tools:
- Standard: Vibrating knife (Pneumatic/Electric)+Pressing Wheel+ V-Groove
- Optional: Straight knife, Drawing Pen
- Vacuum System: Multi-zone adsorption (Stable fixation)
- Transmission: Delta servo motors + Linear guideways/Rack & pinion
- Control System: ZCCUTTER 2.0 motion control card
4. Software & Compatibility
- Interface: PLC touchscreen (User-friendly)
- File Formats: DXF/AI/PDF/CDR/PLT
- Command System: HPGL (Industrial standard)
- Data Transfer: Gigabit Ethernet (High-speed)
5. Compatible Materials

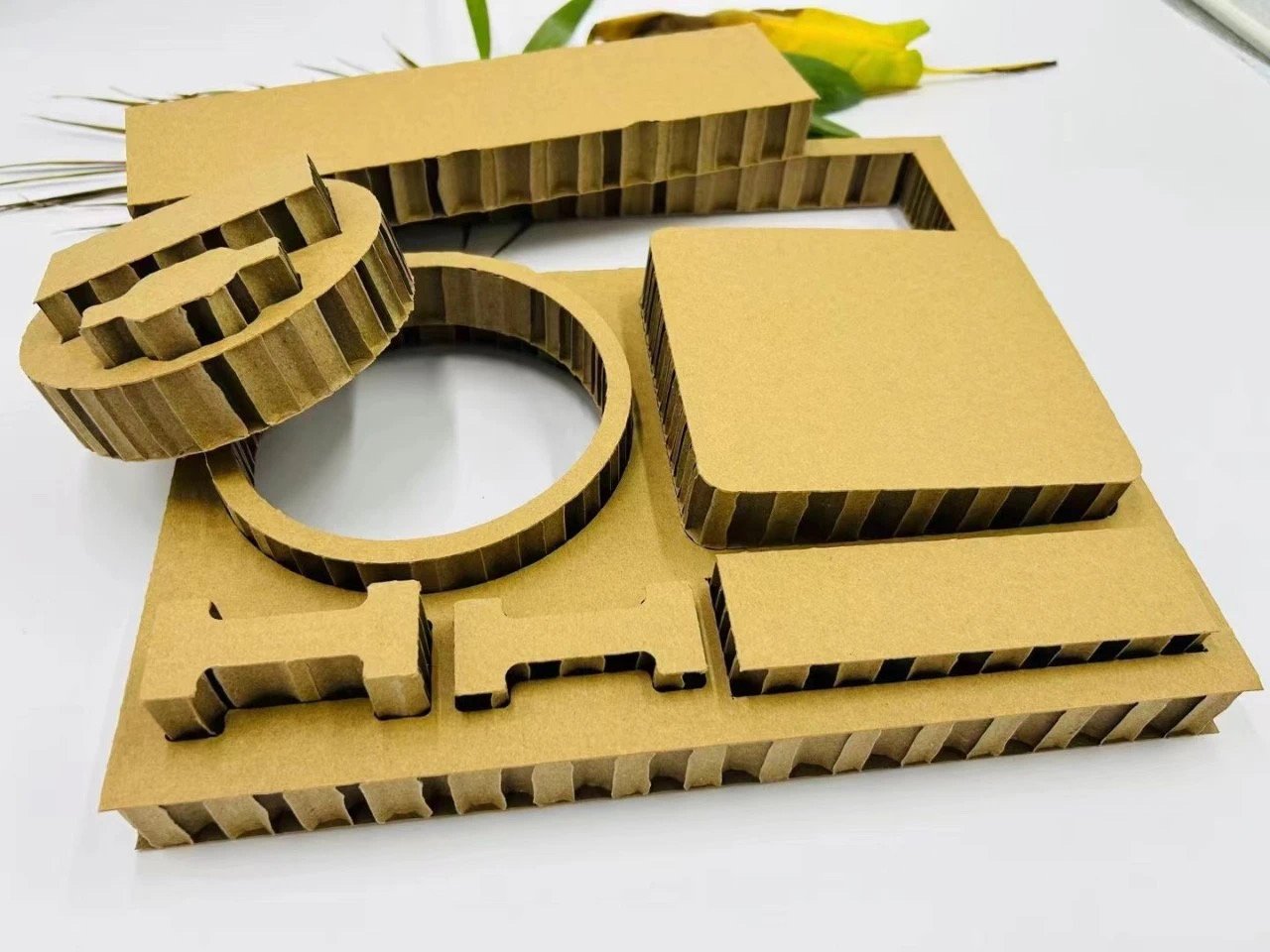

Leather, PVC, ESL foam, EVA, PE foam (EPE), silicone foam, honeycomb boards, etc. Ideal for packaging, automotive interiors, and precision-demanding industries.
6. Value-Added Services
- Customization:
- CCD camera positioning (±0.02mm)
- Extended thickness (up to 100mm)
Other Products
Transform Your Ideas into Reality
Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.
Applications
- Packaging Industry
- Sign & advertising
- Leather Goods
- Apparel
- Automotive upholstery
- New Energy
